Photogrammetry scanner for full-Arch Implant Impression

Digital Impressions for Edentulous Implant Treatment

X-GRAM transforms edentulous implant impressions through a precise photogrammetry-based workflow. By measuring implant positions in seconds, it delivers reliable data for accurate denture design, predictable fit, and reduced chair time. Its contact-free scanning improves patient comfort while integrating seamlessly with existing implant and CAD systems.



  • Sub-30µm implant accuracy
  • Contact-free patient comfort
  • Faster chairside workflows
  • Predictable passive fit
  • Open STL and CAD integration
  • No calibration, no complexity

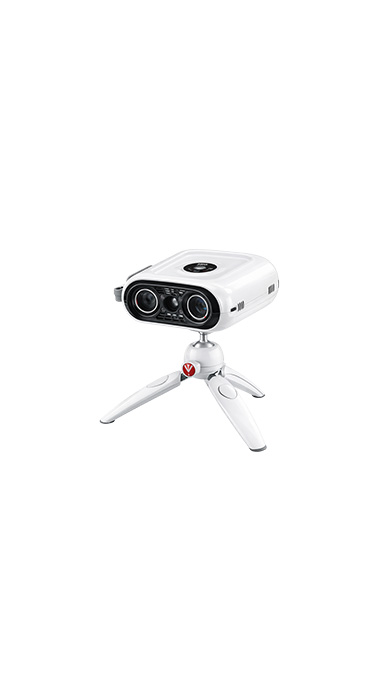

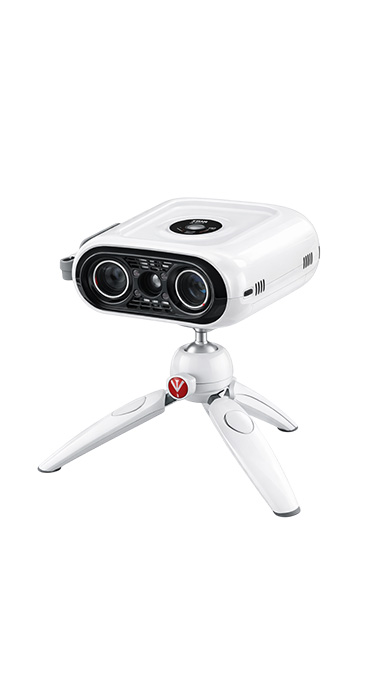

X-GRAM Photogrammetry Camera

X-GRAM Photogrammetry Camera uses high-precision image detection and measurement technology, allowing the acquisition of the implant position data of the edentulous patient with high accuracy, providing precise input for denture design, increasing the success rate of the surgery and patient satisfaction, with precision and comfort in one step.

Accuracy Beyond Measure

  • Position measurement accuracy: 20–30 um
  • Angle measurement accuracy: < 1°
  • Flawless scans for perfect implants
3 Steps, Perfect Results

  • Simplified operation, zero hassle
  • Attach Scan Export STL
Smart & Streamlined

  • 3-hour battery (2500mAh)
  • 1.3kg lightweight
  • Cost-effective PEEK + Titanium scan bodies (100+ uses)
No Touch, No Stress

  • Non-contact scanning, no gagging
  • Reduced chair time
  • Enhances patient experience
Works with All, Fits All

  • Works with major intraoral scanners & implant brands
  • Can be imported to Exocad / 3Shape
20-Second Full-Arch Scan

  • Auto-align scan data
  • Implant recognition
  • No more waiting
Product Specification

High-Performance Features for Reliable Implant Positioning

  • Input Voltage
    15 V / 1.5 A
  • Battery Capacity
    2500 mA
  • Measuring Space
    90 × 90 × 50 mm
  • Measuring Distance
    260 mm
  • Measuring Time
    20 s Half-Arch Impression
  • Number of Measurement Points
    2 to 8
  • Angle Measurement Accuracy
    1.0°
  • Position Measurement Accuracy
    20–30 μm
  • Weight
    1.3 kg (Bracket Not Included)
  • Product Size
    178.9 × 174.3 × 75 mm (Bracket Not Included)
High Precision
Measurement Accuracy
Rapid Scanning
Contact-Free Scanning
High-Resolution
Lightweight Design
Extended Battery

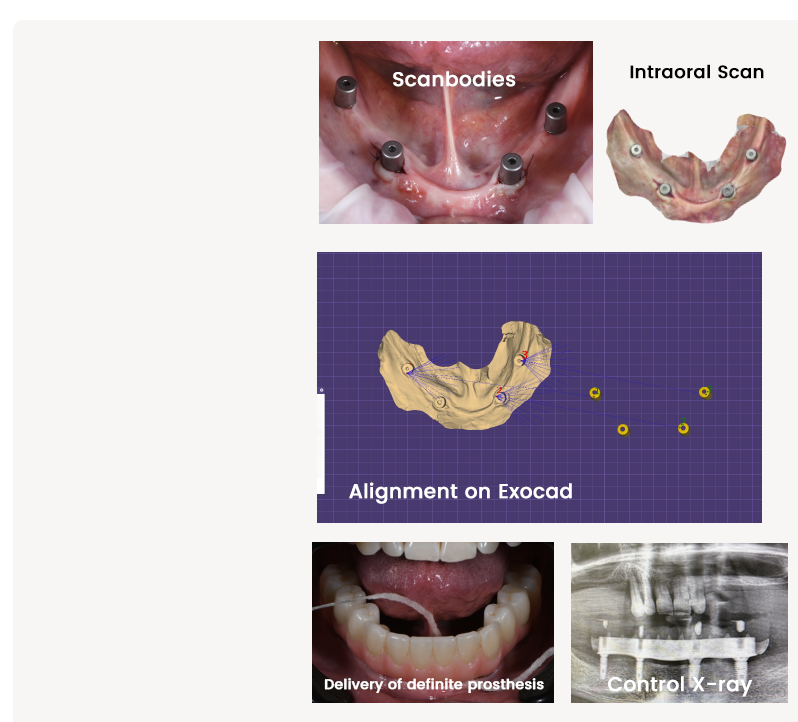

Step 1

Intra Oral Scanning

  1. Use wax rims and dentures to determine the occlusal relationship.

  2. Capture soft tissue and gingival scan body information.

Step 2

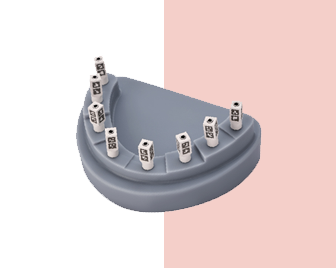

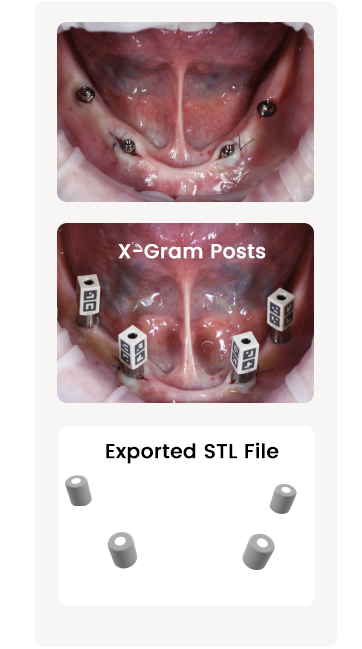

Installing the Scan body

Attach the scan body to the multiunit using the compatible 1.4mm or 1.8mm screw.

Step 3

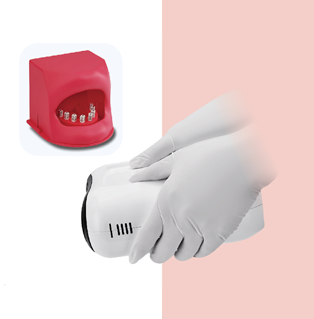

Measurement

Use the software to capture the relative position of the scan body.

Step 4

Export STL File

Export an STL file that includes the scan body with accurate relative positioning.

Step 5

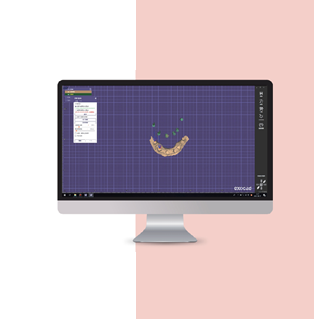

Bridge Design

Use CAD software to match the scan body position and complete the design and manufacturing of the denture.

Step 6

Final Restoration

Complete the denture placement and final restoration.
